Restoring a Lost Database from .frm Files with Python 3 & mysqlfrm

My database was wiped out by a bad server setting. Digging through forums, I kept running into the same two files, .frm and .ibd, so here is the simplest way I found to bring many tables back at once.

A .frm file stores an InnoDB table’s structure, while the matching .ibd file holds the raw table data. The .ibd can’t be read as a database on its own, so the structure has to be rebuilt first, then the data imported into it.

The method below leans on a short Python script and mysqlfrm, a tool from the MySQL Utilities archive. Because it loops over the folder, it rebuilds every table in one pass.

What you’ll need

The .frm and .ibd files. On my CentOS 7 server they lived under /var/lib/mysql/<database>.
A working folder to copy them into, e.g. C:\Users\ilham\Documents\<database>.
The mysqlfrm tool from the MySQL Utilities archive.
A local MySQL server, installed and running (I used Laragon).

Step 1 · Export each table structure

Loop over every .frm in the folder and run mysqlfrm against your local server, writing the output to one .sql file per table.

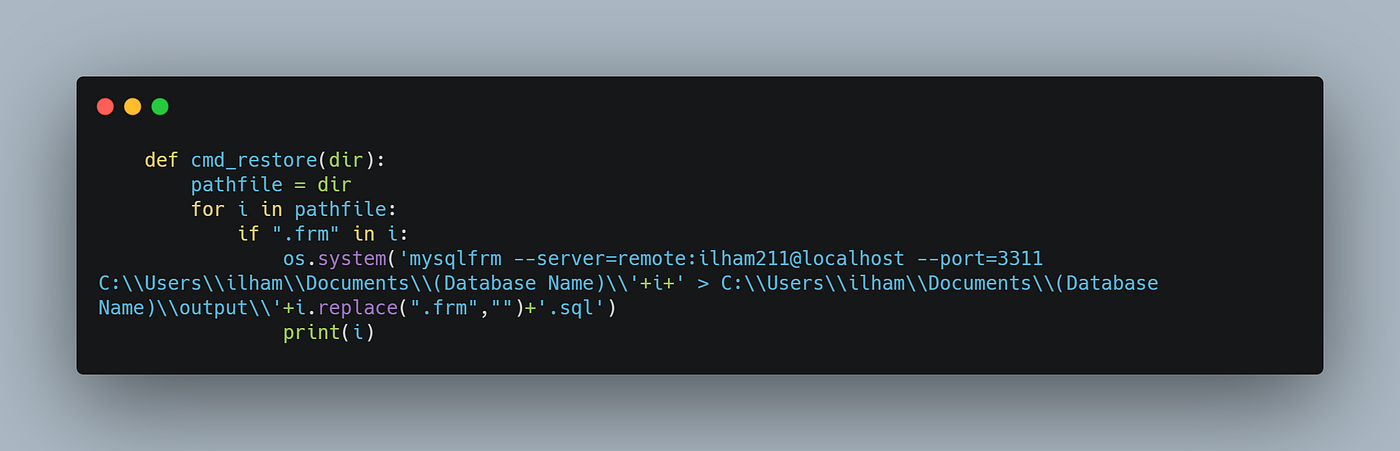

Python cmd_restore() function looping over .frm files and running mysqlfrm — cmd_restore() runs mysqlfrm on every .frm file and saves one .sql per table.

Step 2 · Clean up the output

mysqlfrm wraps the CREATE TABLE statement in extra log text, so the raw .sql won’t run as-is. Strip those lines so each file holds a single, valid query.

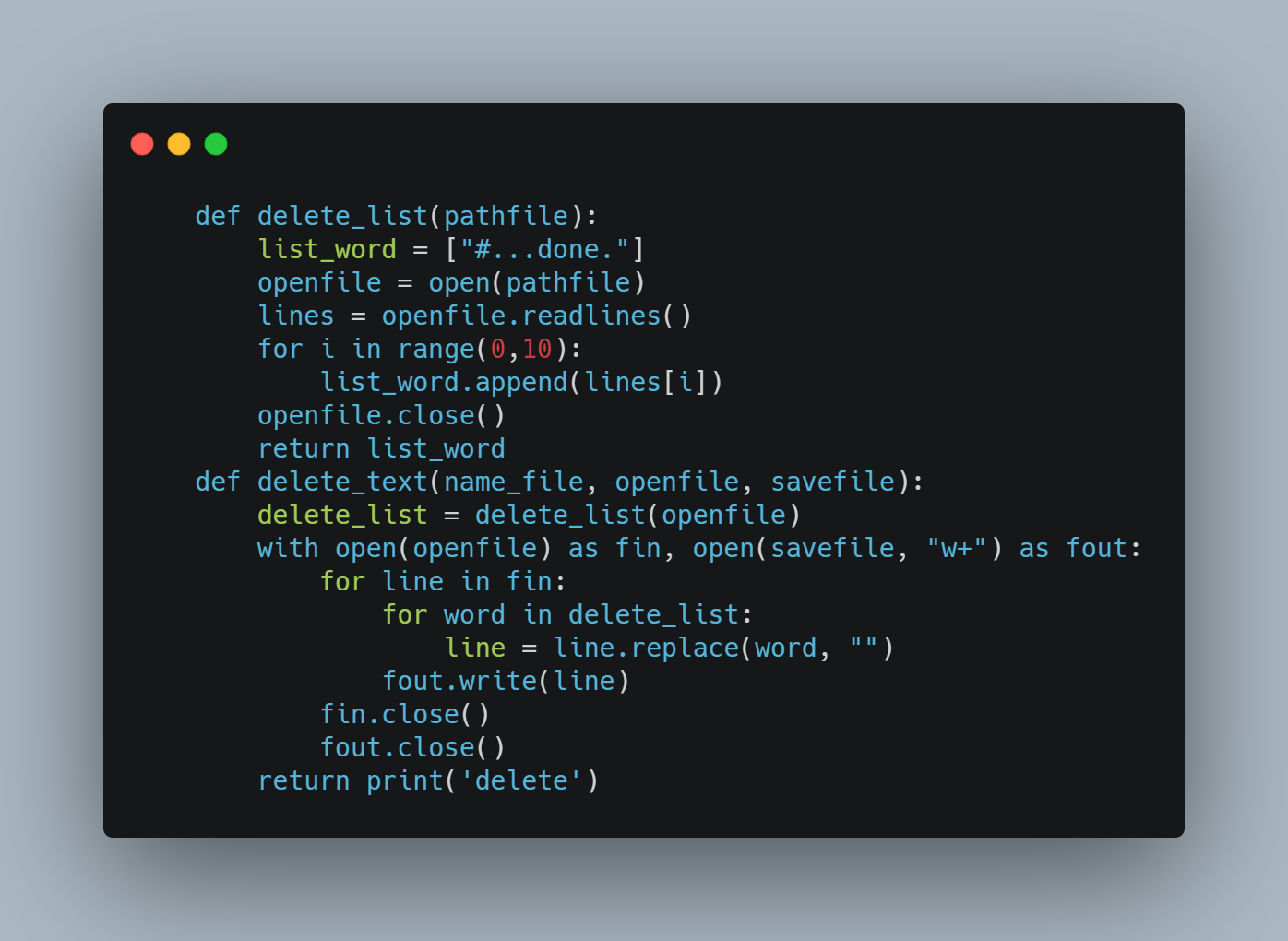

Python delete_list() and delete_text() functions stripping mysqlfrm log lines — delete_text() removes the mysqlfrm log lines, leaving a runnable statement.

Then run the cleaner across the whole output folder.

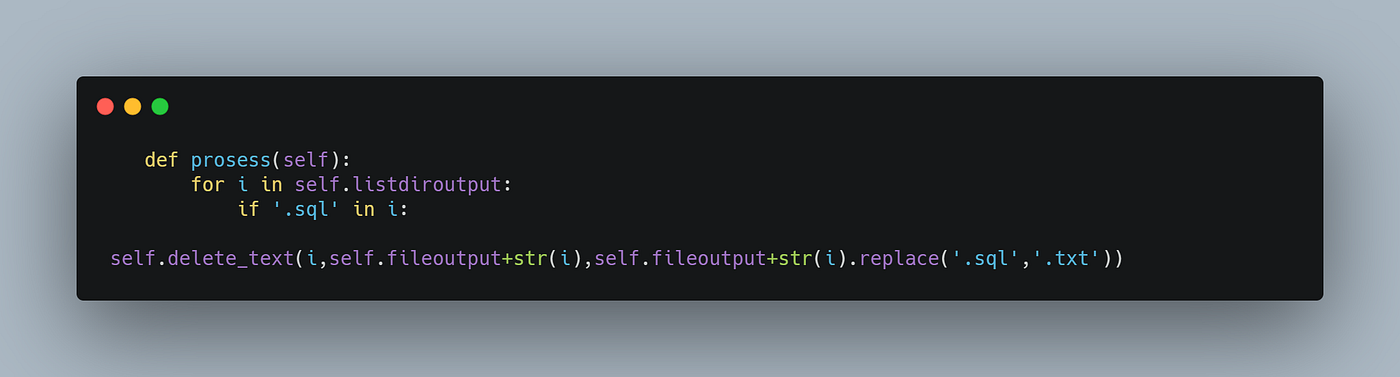

Python prosess() function cleaning every .sql file in the output folder — prosess() cleans each .sql in the output folder and re-saves it as .txt.

Step 3 · Recreate the tables

With the structures cleaned up, connect to a fresh database and execute each query. I used pymysql, swapping the old database name for the new one as each file is read.

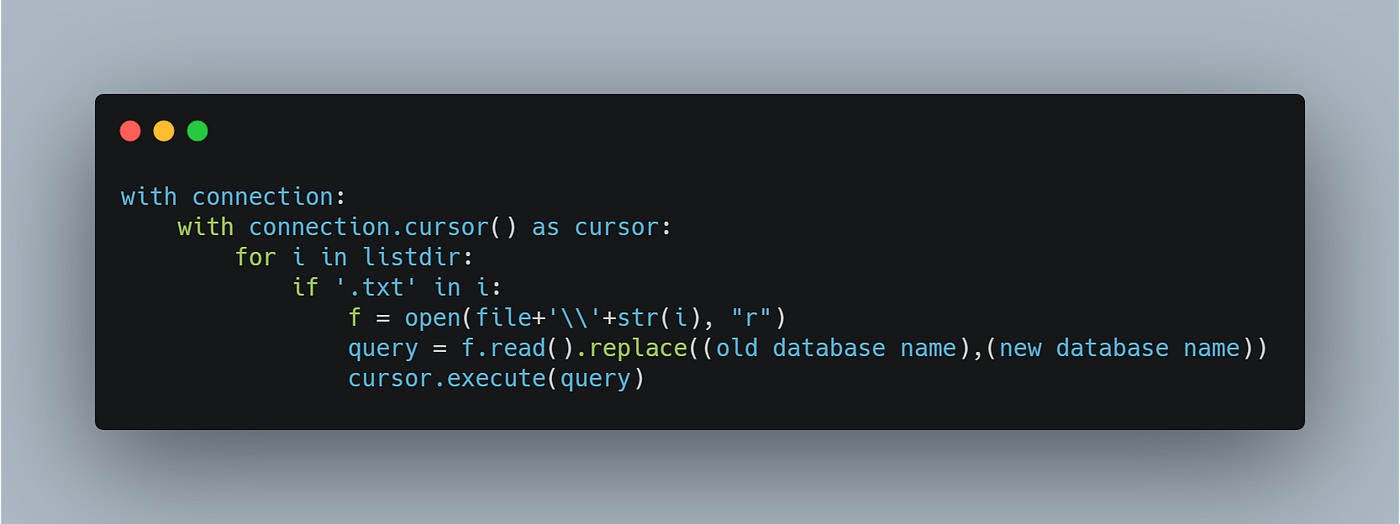

Python pymysql connection reading each query and executing it against the new database — pymysql reads each cleaned query and runs it against the new database.

Step 4 · Import the data

The tables exist now, but they’re empty. Copy the original .ibd files into the new database folder (with Laragon mine sit at C:\laragon\data\mysql\<database>), then import each tablespace:

ALTER TABLE `table_name` IMPORT TABLESPACE;

Run it the same way you ran the structure queries. Once every tablespace is imported, the database is back, with structure and data intact.

The full script lives on GitHub and I keep it updated. This walkthrough was originally published on Medium. Grab the code with the buttons below.
